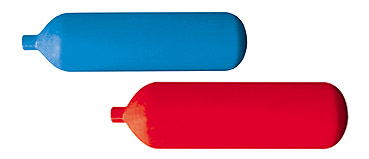

HIGH PRESSURE CYLINDERS FOR CIVIL USE
MARINE INDUSTRY BREATHING APPARATUS ETC.)
HOSE REEL CARBON DIOXIDE & CIVIL ALUMINUM CYLINDERS
Article Code Length
YO-222A 20m.25m.30m
TYPE 2.0kg 2.3kg 3kg 4kg 4.5kg
Out-Diameter(mm) 111 120 120 140 140
Volume(L) 3.0 3.5 4.5 6.0 7.5
Min wall-thickness(mm) 5.1 6.0 5.6 6.5 7.4
Working Pressure(bar) 170 170 170 170 170
Test Pressure(bar) 250 250 250 250 250
Cylinder Length(mm) 485 450 605 600 665
Cylinder Weight(kg) 3.2 3.6 4.6 6.7 7.6
CO2 Filled(kg) 2.0 2.3 3.0 4.0 4.5

*Filling ratio K=0.67 Temperature range:-30 to +60


TDSJ-1
(High leg)
TDSJ-2
(Middle leg)
TDSJ-3
(Low leg)
Min reverse reflecting coefficient(cd.1x-1)
Red
0 1.0 20
   12 1.59 1.29 0.96
30 0.8 0.65 0.5
RUBBER LINING FIRE HOSE
PVC LINING FIRE HOSE
PU LINING FIRE HOSE
Size
25mm
40mm
45mm
50mm
65mm
70mm
80mm
100mm
150mm
Working Pressure Bursting Pressure
8bar 24bar
10bar 30bar
12bar 36bar
13bar 39bar
14bar 42bar
16bar 48bar
20bar 60bar
25bar 75bar
40bar 120bar
